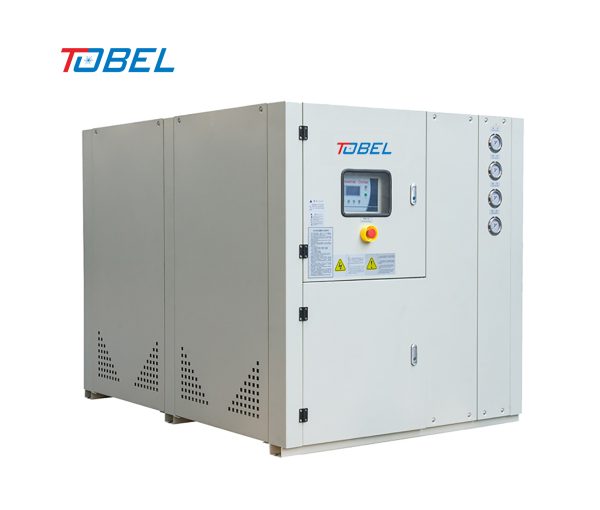

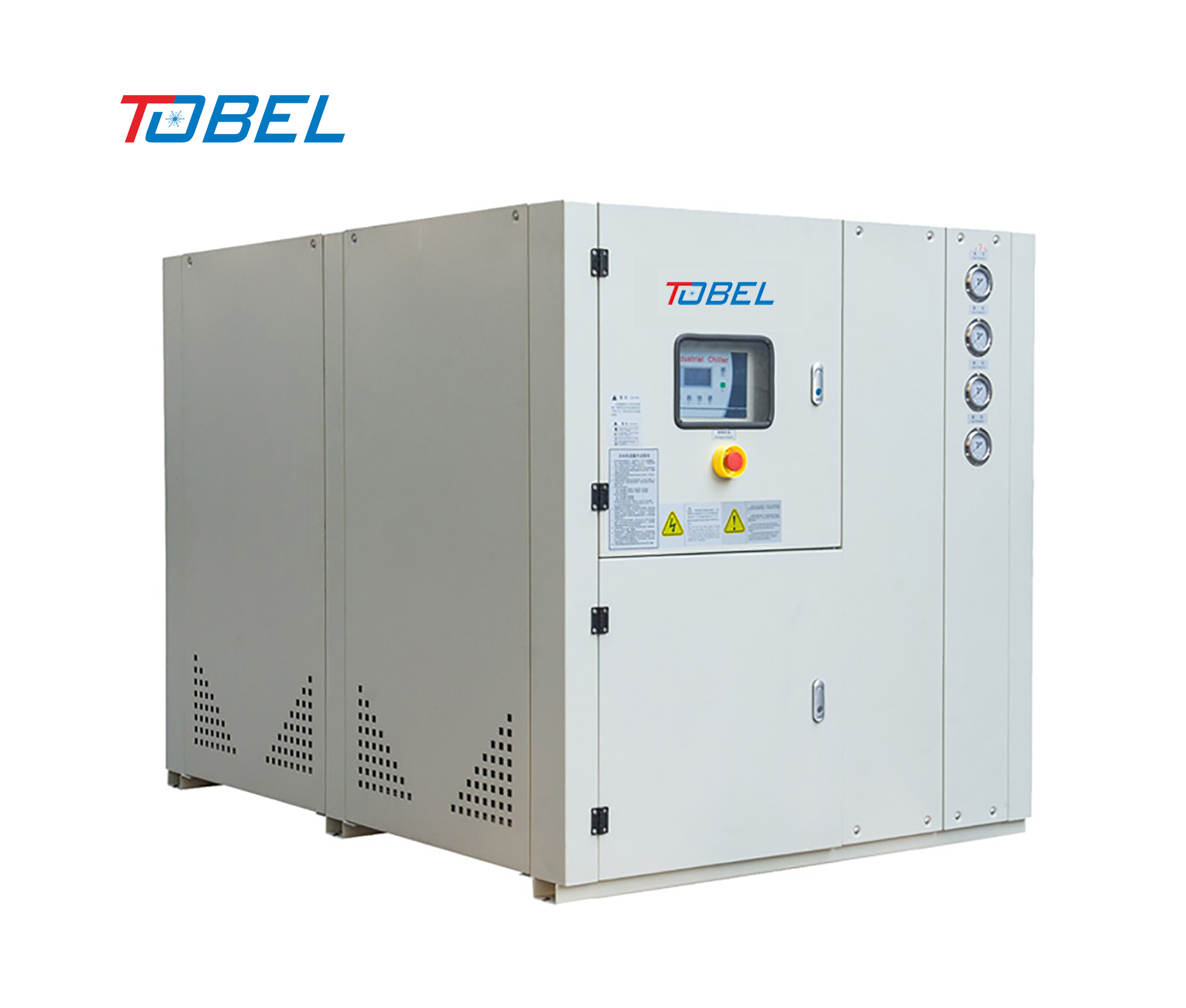

● Scroll hermetic compressor from an internationally renowned brand, designed for reliable operation and minimal maintenance.
● Electrical components and refrigeration parts sourced from world-renowned brands to ensure dependable performance.
● Industrial-grade, durable design featuring a stainless steel water tank and high-lift pumps.
● Comprehensive safety protection, including high and low pressure protection, discharge temperature protection, oil level protection, water flow protection, phase reversal and phase loss protection, chilled water freeze protection, and cooling water over-temperature protection.

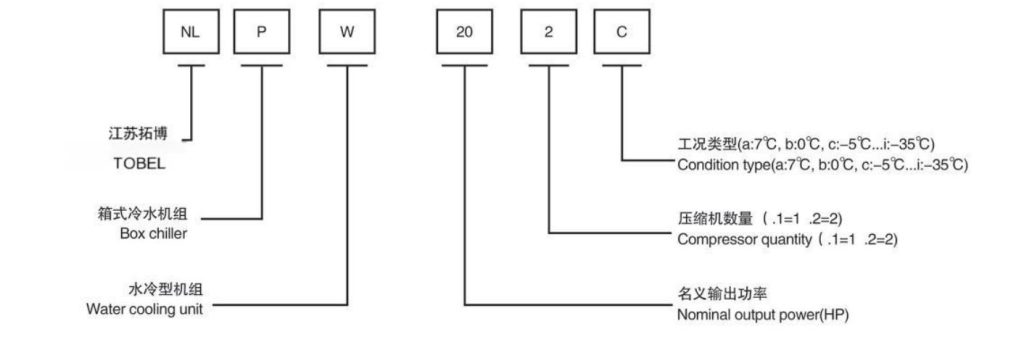

| 型号Type | WCW- | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.1 | 5.1 | 8.1 | 10.1 | 12.1 | 15.1 | 20.1 | 20.2 | 25.2 | 30.2 | 40.2 | 50.2 | 60.2 | |||||||||||||||||||||||||||||||||||||||||||
| 制冷量 Cooling capacity |
kW | 9.8 | 15.9 | 28.6 | 31.7 | 36.3 | 46.0 | 61.5 | 63.4 | 72.6 | 91.0 | 121.0 | 148.8 | 192.7 | |||||||||||||||||||||||||||||||||||||||||
| ×10³kcal/h | 8.4 | 13.7 | 24.6 | 27.3 | 31.2 | 39.6 | 52.9 | 54.6 | 62.5 | 78.3 | 104.1 | 128.1 | 165.8 | ||||||||||||||||||||||||||||||||||||||||||
| RT | 2.8 | 4.5 | 8.1 | 9.0 | 10.3 | 13.1 | 17.5 | 18.1 | 20.7 | 25.9 | 34.4 | 42.4 | 54.8 | ||||||||||||||||||||||||||||||||||||||||||
| 整机功率Whole machine power | kW | 2.5 | 4.1 | 6.5 | 1.2 | 8.4 | 11.3 | 15.3 | 14.3 | 16.1 | 22.5 | 27.8 | 36.6 | 47.1 | |||||||||||||||||||||||||||||||||||||||||
| 整机电流Whole machine curent | A | 4.4 | 7.2 | 11.5 | 12.7 | 15.0 | 20.1 | 27.3 | 25.5 | 28.7 | 39.4 | 48.7 | 64.0 | 82.4 | |||||||||||||||||||||||||||||||||||||||||
| 压缩机 Compressor |
输入功率Input power | kW | 2.1 | 3.5 | 5.7 | 6.4 | 7.3 | 10.2 | 13.8 | 12.8 | 14.6 | 20.3 | 25.6 | 32.6 | 41.6 | ||||||||||||||||||||||||||||||||||||||||
| 运转电流Operating curent | A | 3.7 | 6.2 | 10.1 | 11.4 | 13.0 | 18.1 | 24.6 | 22.8 | 26.0 | 35.4 | 44.5 | 56.7 | 72.3 | |||||||||||||||||||||||||||||||||||||||||
| 数量Quantity | 台Unit | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||||||
| 冷冻水 Frozen water |
水流量Water flow | L/min | 28 | 46 | 82 | 91 | 104 | 132 | 176 | 182 | 208 | 261 | 347 | 427 | 553 | ||||||||||||||||||||||||||||||||||||||||
| 接口Interface | mm | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | ||||||||||||||||||||||||||||||||||||||||||||||||
| 冷却水 Cooling water |
水流量Water flow | L/min | 35 | 57 | 103 | 114 | 130 | 165 | 220 | 227 | 260 | 326 | 434 | 533 | 691 | ||||||||||||||||||||||||||||||||||||||||
| 接口Interface | mm | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | ||||||||||||||||||||||||||||||||||||||||||||||||
| 冷冻水泵 Frozen water pump |
输入功率Input power | kW | 0.37 | 0.55 | 0.75 | 0.75 | 1.10 | 1.10 | 1.50 | 1.50 | 1.50 | 2.20 | 2.20 | 4 | 5.5 | ||||||||||||||||||||||||||||||||||||||||
| 扬程Lift off | mH₂O | 15 | 20 | 19 | 19 | 17 | 25 | 24 | 24 | 22 | 22 | 20 | 31 | 30 | |||||||||||||||||||||||||||||||||||||||||
| 水箱标称容积Nominal capacity of water tank | L | 80 | 90 | 190 | 190 | 190 | 210 | 250 | 250 | 250 | 320 | 400 | 455 | 500 | |||||||||||||||||||||||||||||||||||||||||
| 制冷剂 Refrigerant |
类型Type | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R410A | R410A | R410A | |||||||||||||||||||||||||||||||||||||||||
| 充注量Charge | kg | 1.9 | 3.1 | 5.5 | 6.1 | 7.0 | 8.9 | 11.9 | 12.3 | 14.0 | 17.6 | 21.7 | 26.7 | 34.5 | |||||||||||||||||||||||||||||||||||||||||
| 外形尺寸 External dimensions |
长Length | mm | 1200 | 1200 | 1400 | 1500 | 1550 | 1600 | 1900 | 1900 | 2000 | 2100 | 2300 | 2500 | 2700 | ||||||||||||||||||||||||||||||||||||||||
| 宽Width | mm | 800 | 800 | 850 | 930 | 970 | 970 | 1200 | 1200 | 1200 | 1200 | 1400 | 1400 | 1500 | |||||||||||||||||||||||||||||||||||||||||
| 高Height | mm | 860 | 860 | 960 | 1030 | 1100 | 1100 | 1180 | 1180 | 1180 | 1380 | 1400 | 1500 | 1500 | |||||||||||||||||||||||||||||||||||||||||
| 整机重量Whole machine weight | 150 | 220 | 310 | 360 | 450 | 650 | 850 | 850 | 1050 | 1250 | 1350 | 1460 | 1520 | ||||||||||||||||||||||||||||||||||||||||||
NOTE
1.Cooling capacity rated at oil 35°C / ambient 35°C. Performance degrades with higher ambient temperature or lower oil temperature.
2.Installation requires min. 300cm clearance around unit for air intake/exhaust.
3.Non-standard/custom options available upon request. Contact us for details.
4.Specifications subject to change without notice for product improvement.
Drawings are for reference only; actual specifications will be provided based on the specific order.
