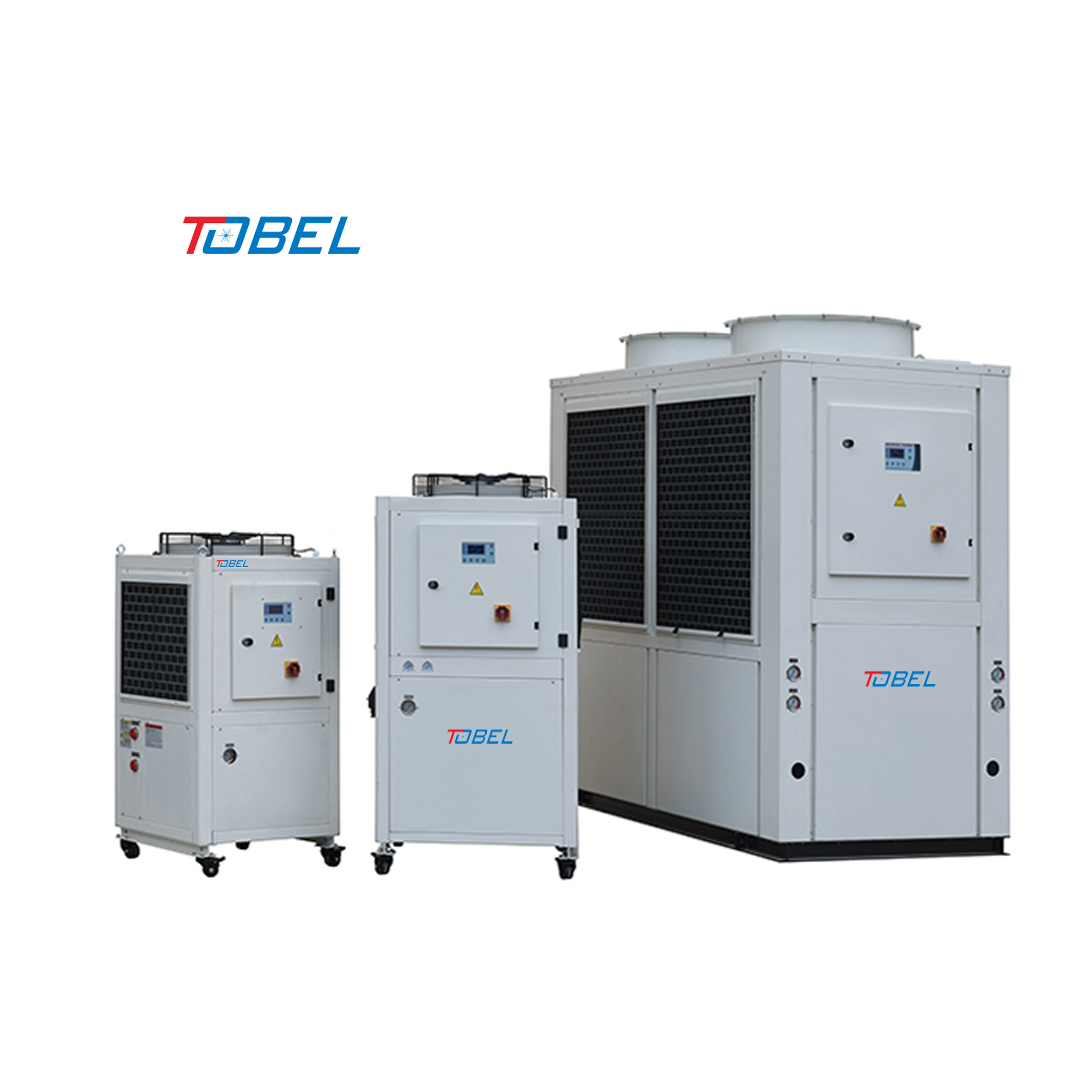

The HACO Series High-Temperature Oil Chiller is heavy-duty process cooling equipment specifically engineered for demanding high-temperature industrial fluid cooling. Built to maintain strict thermal stability under extreme heat loads, the HACO series ensures continuous, reliable operation for high-power hydraulic systems, hot-forging machinery, gearboxes, and high-load industrial processing units. By keeping oil viscosity at optimal levels, it prevents system overheating, reduces component wear, and significantly extends equipment lifespan.
The HACO Series is designed for heavy-duty industrial applications requiring high-temperature heat dissipation and continuous oil temperature management:
| TOBLE HACO Series Oil Chiller Technical specification parameter table | |||||||||||||
| Model | HACO60 | HACO80 | HACO120 | HACO150 | HACO180 | HACO240 | HACO300 | HACO400 | HACO500 | HACO600 | HACO800 | ||
| Cooling capacity[kcal/h] | 6000 | 8000 | 12000 | 15000 | 18000 | 24000 | 30000 | 40000 | 50000 | 60000 | 80000 | ||
| Temp. range | Fixed temperature type: adjustable from 28°C to 45°C; Room temperature synchronized type: room temperature ΔT (ΔT = 1 to 3°C) |
||||||||||||
| Total power[kW] | 5.25 | 6 | 7.8 | 11.5 | 14.5 | 19.2 | 22.5 | 28 | 39.5 | 48.5 | 56.5 | ||
| Rated current[A] | 11.42 | 12 | 14.2 | 22.6 | 28 | 40 | 45 | 56 | 80 | 94 | 112 | ||
| Working Condition |
Environmental requirement | 20~55℃，Good ventilation, no corrosive mist, and no strong vibration source. | |||||||||||
| Oil temperature | 20~70 °C | ||||||||||||
| Oil type | Hydraulic oil、lubricating oil | ||||||||||||
| Oil viscosity | 10~100（Viscosity values over 100 require Customization） | ||||||||||||
| Power supply | 3PH/AC380V±10%/50HZ(customized) | ||||||||||||
| Refrigerant | Type | R134a | |||||||||||
| Control method | Electronic expansion valve | ||||||||||||

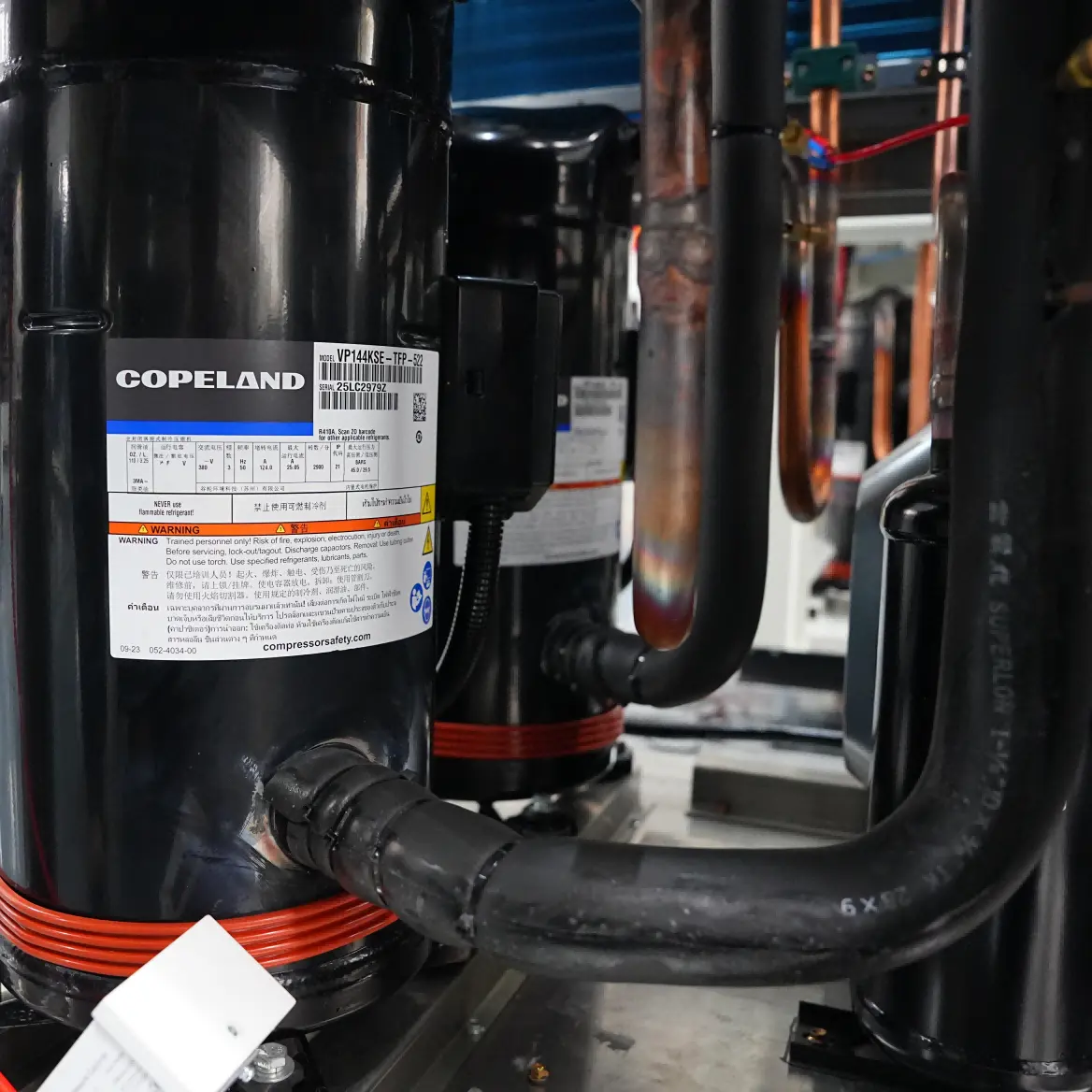

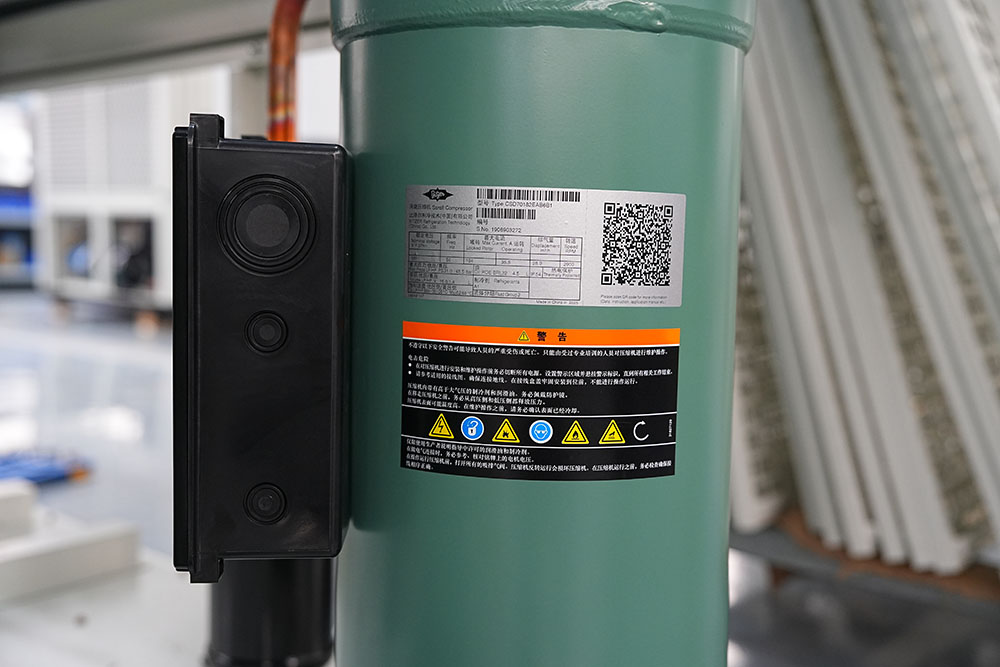

| Compressor | Type | Fully enclosed scroll compressor | |||||||||||
| Input Power（KW） | 3.58 | 4.4 | 5.8 | 8.8 | 10.4 | 14.2 | 9×2 | 10.3×2 | 14.2×2 | 16.9×2 | 21.2×2 | ||

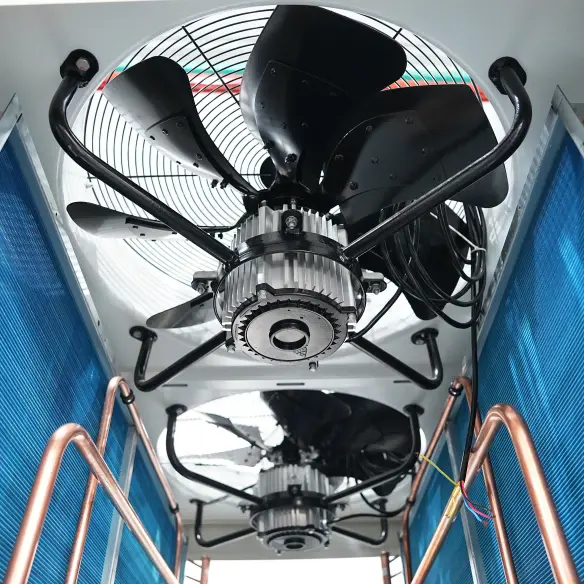

| Condenser | Type | High efficiency copper tube sleeve hydrophilic aluminum fin + External rotor axial fan | |||||||||||
| Fan power(KW) | 0.45 | 0.55 | 0.85 | 1 | 1.6 | 1.7 | 0.95×2 | 1.1×2 | 1.5×2 | 2.2×2 | 2.5×2 | ||
| Air flow | 7328 | 8560 | 12480 | 15887 | 23730 | 25380 | 31250 | 36000 | 42000 | 48000 | 53500 | ||
| Evaporator | Type | Brazed plate heat exchanger | |||||||||||
| SIze of interface | Type(Internal thread) | G1”×1” | G1”×1” | G1¼”×1¼” | G1¼”×1¼” | G1¼”×1¼” | G2”×2” | G2”×2” | DN65×DN65 | DN80×DN80 | DN80×DN80 | DN80×80 | |
| Spec | |||||||||||||
| Pump（Optional variable frequency pump） | Motor power(KW) | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 5.5 | 7.5 | 7.5 | 7.5 | |
| Flow(L/min) | 32 | 40 | 63 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 350 | ||
| Overall dimension | Width C | 630 | 700 | 754 | 801 | 801 | 881 | 920 | 920 | 1080 | 1251 | 1251 | |
| Length B | 670 | 750 | 824 | 1255 | 1355 | 1555 | 1670 | 1740 | 2080 | 2601 | 2601 | ||
| Height A | 1190 | 1343 | 1441.5 | 1504 | 1584 | 1685 | 1853 | 1890 | 2185 | 2331 | 2406 | ||
| Weight | 120 | 130 | 240 | 290 | 360 | 175 | 560 | 620 | 780 | 1000 | 1100 | ||
| Safety protection | Phase failure & reverse phase, compressor overheating, overcurrent, high/low pressure, oil pump overload, fault alarm | ||||||||||||
| NOTE Installation requires min. 300cm clearance around unit for air intake/exhaust. Non-standard/custom options available upon request. Contact us for details. Specifications subject to change without notice for product improvement. |
|||||||||||||
NOTE
1.Cooling capacity rated at oil 35°C / ambient 35°C. Performance degrades with higher ambient temperature or lower oil temperature.
2.Installation requires min. 300cm clearance around unit for air intake/exhaust.
3.Non-standard/custom options available upon request. Contact us for details.
4.Specifications subject to change without notice for product improvement.

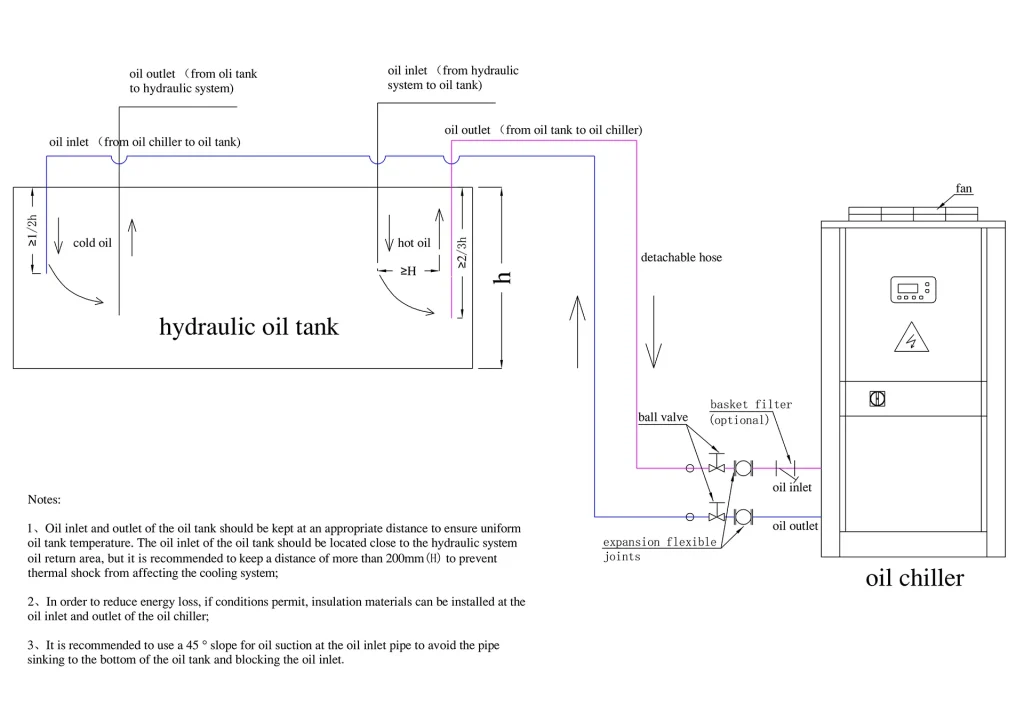

Drawings are for reference only; actual specifications will be provided based on the specific order.
