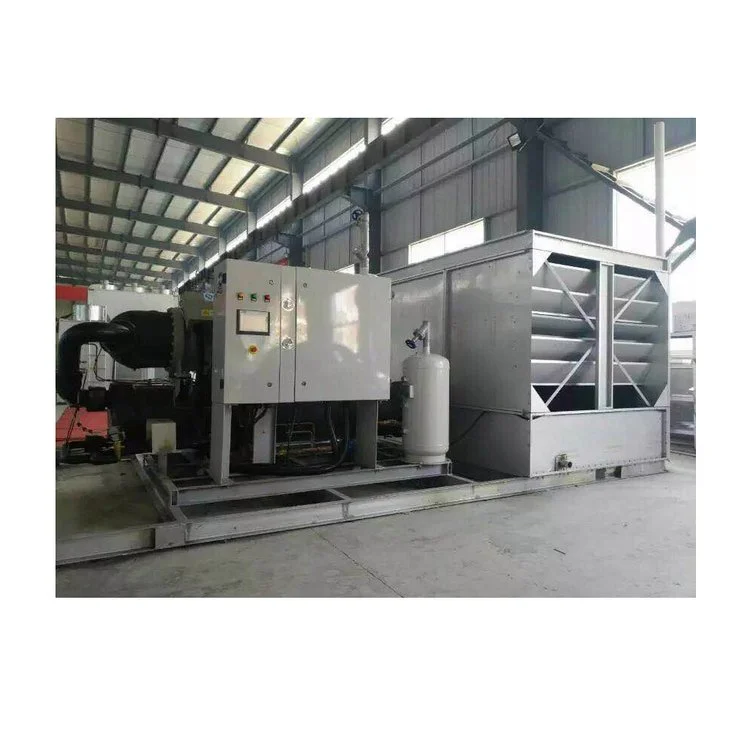

Super-high-temperature heat pump units, micro-pressure steam heat pump units, steam booster units, and steam-to-water heat pump units are widely used for low-grade waste heat recovery. Applications include the recovery and reuse of waste hot water, waste steam, and wind-related waste heat to produce high-temperature hot water, micro-pressure steam, and high-pressure steam, maximizing waste heat utilization.
As environmental protection policies become increasingly stringent, coal-fired boilers are being gradually phased out. Compared with traditional hot water and steam production methods, energy-efficient and environmentally friendly heat pump systems offer significant market potential.
1. High-Temperature Compressor
Equipped with a specialized high-temperature compressor for stable and reliable performance, the unit can recover waste heat at 5–85°C to produce steam at 105–120°C or hot water at 50–120°C, delivering high heating efficiency and an excellent coefficient of performance (COP).
2. Environmentally Friendly Refrigerants
The unit uses medium-pressure refrigerants such as R245fa, R515B, R134a, R1234ze, and R1233zd. These refrigerants support environmentally conscious operation, moderate system pressure, and operation within their optimal temperature ranges.
3. Modular Design
The modular design allows flexible configuration to meet both centralized and distributed heating demands. By positioning the heat pump close to the heat source or point of use, the system minimizes pipeline heat losses and reduces installation and operating costs.
4. Intelligent Automatic Control
The automatic control system responds quickly to changes in waste heat temperature, keeping the unit operating at optimal efficiency. It continuously monitors system performance, promptly issues warnings or alarms when abnormal conditions are detected, and automatically activates protective measures.
5. Cloud-Based Intelligent Monitoring
The cloud-based intelligent platform enables remote, real-time monitoring of unit operation. Users can access historical operating data, alarms, and big data analysis and diagnostics at any time, helping ensure safe, stable, and efficient operation.
6. Comprehensive Testing Capabilities
The unit undergoes comprehensive testing, with test conditions supporting steam and hot water temperatures of up to 180°C. This helps reduce on-site commissioning time and maximizes equipment reliability before delivery.
| 机 型 T y p e | WSG- | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 110.1 | 260.1 | 300.1 | 340.1 | 390.1 | 430.1 | 470.1 | 540.1 | 590.1 | 630.1 | 670.1 | 720.1 | 830.1 | 910.1 | 940.1 | 1070.1 | 1240.1 | 1540.1 | 1730.1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| 压缩机Compressor | 100 | 230 | 260 | 300 | 340 | 370 | 410 | 470 | 510 | 550 | 580 | 620 | 710 | 790 | 830 | 930 | 1020 | 1270 | 1530 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| 30℃进水 | 制热量Heat production | kW | 110 | 260 | 300 | 340 | 390 | 430 | 470 | 540 | 590 | 630 | 670 | 720 | 830 | 910 | 940 | 1070 | 1240 | 1540 | 1730 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 10⁴kcal/h | 9.5 | 22.4 | 25.8 | 29.3 | 33.6 | 37 | 40.4 | 46.5 | 50.8 | 54.2 | 57.7 | 62 | 71.4 | 78.3 | 80.9 | 92.1 | 106.7 | 132.5 | 148.9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| 输入功率Input Power | kW | 39.2 | 81.8 | 91.9 | 106.2 | 122.2 | 131.4 | 145.8 | 164.6 | 168.4 | 181.3 | 189.2 | 206.4 | 236.3 | 257.3 | 269.8 | 310.3 | 360.1 | 423.2 | 476.1 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 额定电流rated curent | A | 67.8 | 141.5 | 159 | 183.7 | 211.4 | 227.3 | 252.2 | 284.8 | 291.3 | 313.6 | 327.3 | 357.1 | 408.8 | 445.1 | 466.8 | 536.8 | 623 | 732.1 | 823.7 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 废水流量Wastewater flow | m³/h | 12.2 | 30.7 | 35.8 | 40.2 | 46.1 | 51.4 | 55.8 | 64.6 | 72.5 | 77.2 | 82.7 | 88.3 | 102.1 | 112.3 | 115.3 | 130.7 | 151.3 | 192.1 | 215.7 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 压降Pressure drop | kPa | 49 | 49 | 49 | 50 | 51 | 52 | 53 | 54 | 55 | 56 | 57 | 58 | 59 | 60 | 61 | 62 | 63 | 64 | 65 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 热水流量Hot water flow | m³/h | 18.9 | 44.7 | 51.6 | 58.5 | 67.1 | 74 | 80.8 | 92.9 | 101.5 | 108.4 | 115.2 | 123.8 | 142.8 | 156.5 | 161.7 | 184 | 213.3 | 264.9 | 297.6 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 压降Pressure drop | kPa | 50 | 50 | 51 | 52 | 53 | 54 | 55 | 56 | 57 | 58 | 59 | 60 | 61 | 62 | 63 | 64 | 65 | 66 | 67 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 35℃进水 | 制热量Heat production | kW | 130 | 300 | 340 | 380 | 440 | 480 | 530 | 600 | 660 | 720 | 9 | 820 | 940 | 1020 | 1060 | 1220 | 1400 | 1750 | 1970 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 10⁴kcal/h | 11.2 | 25.8 | 29.3 | 32.7 | 37.9 | 41.3 | 45.6 | 51.6 | 56.8 | 62 | 65.4 | 70.6 | 80.9 | 87.8 | 91.2 | 105 | 120.5 | 150.6 | 169.5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| 输入功率Input Power | kW | 39.5 | 82 | 92.2 | 107.2 | 123.4 | 132.6 | 147.2 | 166.2 | 171.1 | 184.2 | 192.3 | 209.7 | 239.6 | 260.9 | 275.9 | 317.3 | 372.1 | 437.3 | 492 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 额定电流rated curent | A | 68.3 | 141.9 | 159.5 | 185.5 | 213.5 | 229.4 | 254.7 | 287.5 | 296 | 318.7 | 332.7 | 362.8 | 414.5 | 451.4 | 477.3 | 548.9 | 643.7 | 756.5 | 851.2 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 废水流量Wastewater flow | m³/h | 15.6 | 37.5 | 42.6 | 46.9 | 54.5 | 59.8 | 65.8 | 74.6 | 84.1 | 92.2 | 97.6 | 105 | 120.5 | 130.6 | 134.9 | 155.3 | 176.8 | 225.8 | 254.2 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 压降Pressure drop | kPa | 49 | 50 | 50 | 51 | 52 | 53 | 54 | 55 | 56 | 57 | 58 | 59 | 60 | 61 | 62 | 63 | 64 | 65 | 66 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 热水流量Hot water flow | m³/h | 22.4 | 51.6 | 58.5 | 65.4 | 75.7 | 82.6 | 91.2 | 103.2 | 113.5 | 123.8 | 130.7 | 141 | 161.7 | 175.4 | 182.3 | 209.8 | 240.8 | 301 | 338.8 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 压降Pressure drop | kPa | 50 | 51 | 52 | 53 | 54 | 55 | 56 | 57 | 58 | 59 | 60 | 61 | 62 | 63 | 64 | 65 | 66 | 67 | 68 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 40℃进水 | 制热量Heat production | kW | 140 | 330 | 380 | 430 | 500 | 540 | 600 | 680 | 750 | 810 | 860 | 920 | 1050 | 1150 | 1210 | 1380 | 1600 | 2000 | 2240 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 10⁴kcal/h | 12 | 28.4 | 32.7 | 37 | 43 | 46.5 | 51.6 | 58.5 | 64.5 | 69.7 | 74 | 79.2 | 90.4 | 99 | 104.1 | 118.8 | 137.7 | 172.1 | 192.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| 输入功率Input Power | kW | 39.7 | 82.2 | 92.3 | 108.3 | 124.5 | 133.9 | 148.7 | 167.8 | 173.7 | 187 | 195.2 | 212.8 | 242.9 | 264.6 | 282.4 | 324.8 | 387 | 454.8 | 511.7 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 额定电流rated current | A | 68.7 | 142.2 | 159.7 | 187.4 | 215.4 | 231.6 | 257.3 | 290.3 | 300.5 | 323.5 | 337.7 | 368.1 | 420.2 | 457.8 | 488.6 | 561.9 | 669.5 | 786.8 | 885.2 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 废水流量Wastewater flow | m³/h | 17.3 | 42.6 | 49.5 | 55.3 | 64.6 | 69.8 | 77.6 | 88.1 | 99.1 | 107.2 | 114.3 | 121.6 | 138.8 | 152.3 | 159.5 | 181.5 | 208.6 | 265.8 | 297.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 压降Pressure drop | kPa | 49 | 51 | 51 | 52 | 53 | 54 | 55 | 56 | 57 | 58 | 59 | 60 | 61 | 62 | 63 | 64 | 65 | 66 | 67 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 热水流量Hot water flow | m³/h | 24.1 | 56.8 | 65.4 | 74 | 86 | 92.9 | 103.2 | 117 | 129 | 139.3 | 147.9 | 158.2 | 180.6 | 197.8 | 208.1 | 237.4 | 275.2 | 344 | 385.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 压降Pressure drop | kPa | 50 | 52 | 53 | 54 | 55 | 56 | 57 | 58 | 59 | 60 | 61 | 62 | 63 | 64 | 65 | 66 | 67 | 68 | 69 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 运行控制方式Operation Control mode | PLC可编程控制器全自动控制PLC programmable controller fully automatic control | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 电源Power supply | 380V/3N~/50Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 压缩机 Compressor |
型式Type | 5-6非对称半封闭双螺杆压缩机5-6 Asymmetric semi closed twin-screw compressor | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 数量Quantity | 1台1 Unit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 启动类型The startup type | Y-△启动Y-△Firing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 能量调节范围Energy regulation range | 0-25%-50%-75%-100% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 蒸发器 Evaporator |
型式Type | 高效壳管干式换热器Efficient shell and tube dry heat exchanger | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 配管管径Pipe diameter | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 冷凝器 Condenser |
型式Type | 高效壳管式换热器Efficient shell and tube heat exchanger | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 配管管径Pipe diameter | DN65 | DN100 | DN125 | DN150 | DN200 | DN250 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 制冷剂 Refrigerant |
类型Type | R134a | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 充注量Charge | kg | 20 | 77 | 87 | 97 | 113 | 123 | 136 | 154 | 169 | 184 | 194 | 210 | 241 | 261 | 271 | 312 | 358 | 448 | 504 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 外形尺寸 External dimensions |
长Length | mm | 2283 | 2820 | 2778 | 2780 | 3145 | 3060 | 3310 | 3310 | 3500 | 3610 | 3610 | 3720 | 3750 | 3920 | 3940 | 4230 | 4230 | 4380 | 4410 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 宽Width | mm | 1100 | 1200 | 1200 | 1200 | 1200 | 1200 | 1300 | 1300 | 1400 | 1400 | 1400 | 1500 | 1500 | 1500 | 1500 | 1600 | 1600 | 1600 | 1600 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 高Height | mm | 1489 | 1710 | 1710 | 1850 | 1881 | 1890 | 1939 | 1996 | 2010 | 2110 | 2110 | 2110 | 2150 | 2150 | 2180 | 2220 | 2310 | 2350 | 2390 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 机组略重Machine weight | kg | 880 | 1640 | 1680 | 1720 | 2080 | 2280 | 2580 | 2850 | 2900 | 3100 | 3450 | 3600 | 3850 | 4050 | 4230 | 5150 | 6050 | 6900 | 7150 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 运行略重Operating weight | kg | 970 | 1800 | 1850 | 1890 | 2290 | 2510 | 2840 | 3140 | 3190 | 3410 | 3800 | 3960 | 4240 | 4460 | 4650 | 5670 | 6660 | 7590 | 7870 | |||||||||||||||||||||||||||||||||||||||||||||||||||
NOTE
1.Cooling capacity rated at oil 35°C / ambient 35°C. Performance degrades with higher ambient temperature or lower oil temperature.
2.Installation requires min. 300cm clearance around unit for air intake/exhaust.
3.Non-standard/custom options available upon request. Contact us for details.
4.Specifications subject to change without notice for product improvement.
Drawings are for reference only; actual specifications will be provided based on the specific order.

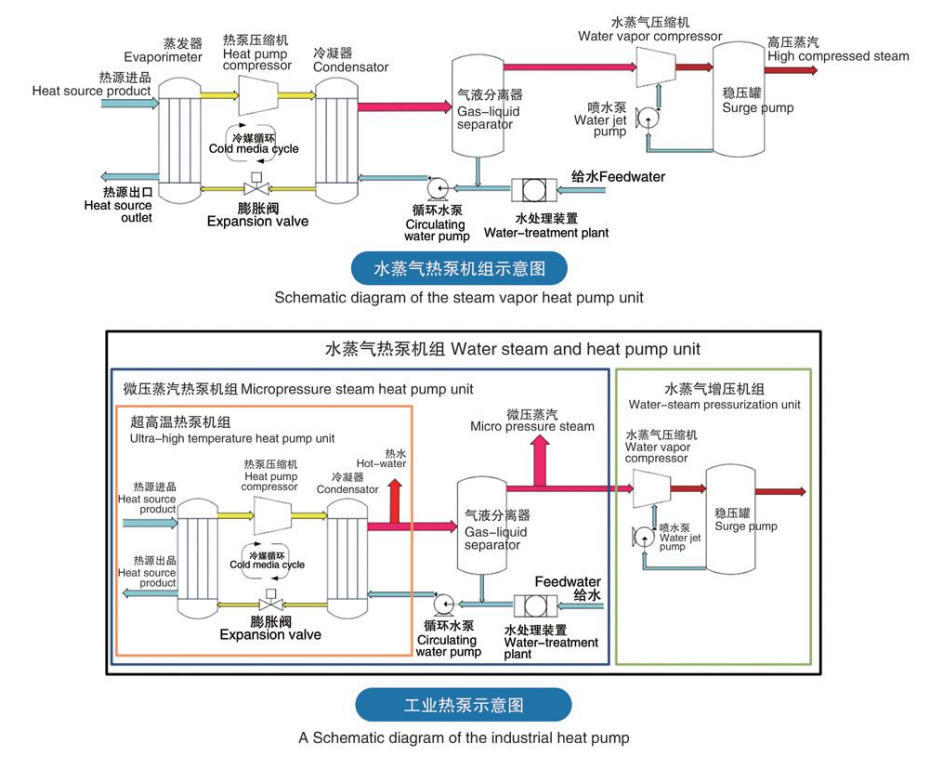

| 机组名称 Uhit nane |
余热温度范围 Waste heant termorature range |
余热形式 Waste heat form |
制热温度范围 Thermal tempoerature range |
制热形式 Thermal fom |
|||||||||||||||||||||||||||||||||||||||||||
| 超高温热泵机组 Utra-high temperature heat pump unit |
5℃”90℃ | 余热水、乏汽 Waste hot water.lack of steam |
50℃~120℃ | 热水 Hot-water |
|||||||||||||||||||||||||||||||||||||||||||
| 微压蒸汽热泵机组 Mcropressure stom hoat pump unit |
40℃”90℃ | 余热水.乏汽 Waste hot watr,lack of steom |
100℃“120℃ | 饱和蒸汽 Satuated stem |
|||||||||||||||||||||||||||||||||||||||||||
| 水蒸气增压机组 Water-steam pressxization unit |
80℃~150℃ | 乏汽 Ded stem |
110℃”180℃ | 饱和蒸汽 Satrated steam |
|||||||||||||||||||||||||||||||||||||||||||
| 水蒸气热泵机组 Water steam and heat pump unit |
40℃”90℃ | 余热水、乏汽 Waste hot water,lack of steam |
110℃180℃ | 饱和蒸汽 Saturated steam |
|||||||||||||||||||||||||||||||||||||||||||
