● High-efficiency twin-screw compressor featuring low noise, reduced wear, and long service life.
● Four-stage capacity control or automatic capacity regulation from 0% to 100%.
● Siemens PLC microcomputer control system with an LCD touchscreen and a bilingual Chinese-English human-machine interface (HMI).
● Comprehensive safety protection, including high and low pressure protection, discharge temperature protection, oil level protection, water flow protection, phase reversal and phase loss protection, chilled water freeze protection, and cooling water over-temperature protection.
● Wide range of chilled water temperature settings to meet the requirements of low-temperature industrial applications.
Compressor
The unit is equipped with a semi-hermetic 5:6 asymmetric twin-screw compressor from a world-renowned brand. Its shaft seal design minimizes the risk of leakage. The compressor features a dual-shaft rotary discharge design and the latest fourth-generation rotor profile, optimized circumferential speed, and precision-engineered tooth geometry for higher compression efficiency.
The motor chamber and compression chamber are integrally cast to ensure greater precision. The double-layer, pressure-compensated rotor housing provides exceptional structural strength, prevents expansion even under high-pressure conditions, and effectively reduces operating noise.
Heat Exchanger
The condenser and evaporator in this series feature shell-and-tube heat exchangers with a new, high-efficiency design. Advanced heat exchanger tube bundles feature unique geometric structures that enhance nucleate boiling, improve fluid turbulence, and reduce water-side fouling for superior heat transfer performance.
Compared with previous designs, the optimized heat exchanger structure improves heat transfer efficiency by up to 30%. The evaporator tubes feature internal spiral grooves and external enhanced-surface technology, while the condenser tubes use internal spiral grooves and enhanced external threading. These technologies improve heat transfer efficiency and evaporation performance, ultimately increasing the unit’s energy efficiency ratio.
PLC Control System
The unit features a user-friendly Chinese-language human-machine interface (HMI) and an LCD screen that displays real-time operating status, enabling automatic control and precise monitoring to maintain optimal operating conditions.
The control panel is sealed, waterproof, dustproof, and corrosion-resistant, with durable keys for extended service life. The system also supports interlocked control of the chilled water pump, cooling water pump, and cooling tower fan.

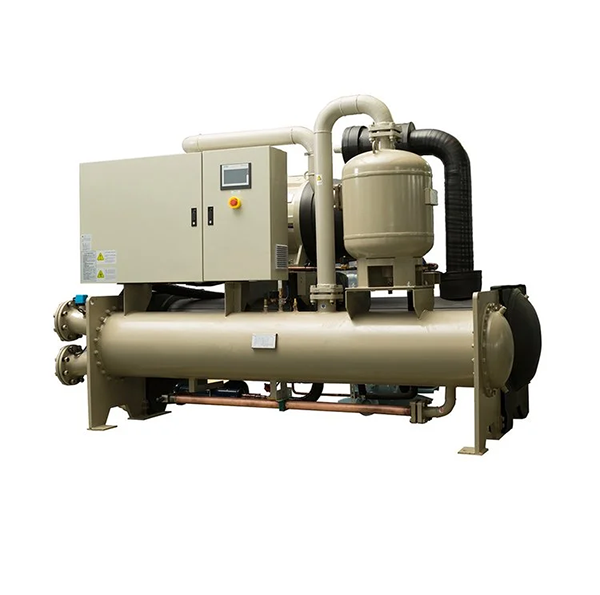

Falling Film Screw Chiller

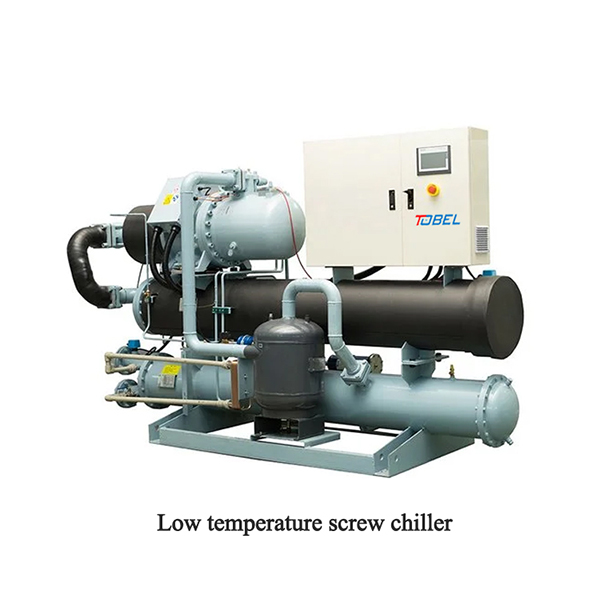

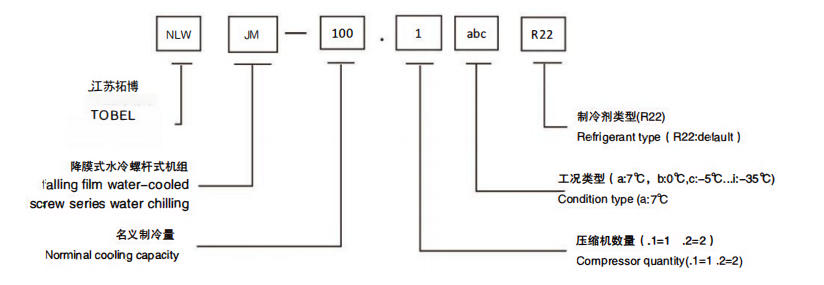

The NLJM series low-temperature chillers use semi-hermetic screw compressors from well-known brands. Each unit incorporates a built-in suction filter, oil filter, oil separator, safety relief valve, and protection module to ensure reliable operation, low noise, and stable performance.
| 机 型 T y p e | WSJM- | 290.1 | 340.1 | 360.1 | 400.1 | 420.1 | 460.1 | 560.1 | 580.1 | 650.1 | 700.1 | ||||||||||||||||||||||||||||||||||||||||||||
| 名义制冷量Nominal cooling capacity | kW | 290 | 340 | 360 | 400 | 420 | 460 | 560 | 580 | 650 | 700 | ||||||||||||||||||||||||||||||||||||||||||||
| 10⁴kcal/h | 25 | 29.3 | 31 | 34.4 | 36.1 | 39.6 | 48.2 | 49.9 | 55.9 | 60.2 | |||||||||||||||||||||||||||||||||||||||||||||
| 运行控制方式Run control | PLC可编程控制器全自动控制PLC programmable controller for fully automatic control | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 电源Power Supply | 380V/3N~/50Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 压缩机 Compressor |
型式Type | 降膜式高效5-6非对称半封闭双螺杆压缩机 Falling film high-efficiency 5-6 asymmetric semi closed twin-screw compresso |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
| 数量Quantity | 1台1 Unit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 启动类型Startup type | Y-△Y-△Firing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 能量调节Energy regulation | 0-25%-50%-75%-100%或50-100%无级容调0-25%-50%-75%-100%α 50-100%stepless capacity adjustment | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 输入功率Input power | kW | 54 | 61.2 | 65.1 | 71 | 77 | 84.9 | 101.7 | 104 | 117 | 125.2 | ||||||||||||||||||||||||||||||||||||||||||||
| 额定电流Rated aurrent | A | 94 | 106.5 | 113.3 | 123.5 | 134 | 147.7 | 177 | 181 | 203.6 | 217.8 | ||||||||||||||||||||||||||||||||||||||||||||
| 蒸发器 Evaporator |
型式Type | 降膜式 | 高效壳管换热器Falling film high-efficiency shell and tube heat exchanger | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| 水量Flow | m³/h | 49.9 | 58.5 | 61.9 | 68.8 | 72.2 | 79.1 | 96.3 | 99.8 | 111.8 | 120.4 | ||||||||||||||||||||||||||||||||||||||||||||
| 配管管径Pipe diameter | DN100 | DN100 | DN100 | DN100 | DN125 | DN125 | DN125 | DN125 | DN150 | DN150 | |||||||||||||||||||||||||||||||||||||||||||||
| 水压降Water pressure drop | kPa | 55 | 55 | 55 | 55 | 58 | 60 | 62 | 67 | 68 | 68 | ||||||||||||||||||||||||||||||||||||||||||||
| 冷凝器 Condenser |
型式Type | 卧式 | 高效壳管换热器 Horizontal high-efficiency shell and tube heat exchanger | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| 水量Flow | m³/h | 62.4 | 73.1 | 77.4 | 86 | 90.3 | 98.9 | 120.4 | 124.7 | 139.8 | 150.5 | ||||||||||||||||||||||||||||||||||||||||||||
| 配管管径Pipe diameter | DN100 | DN100 | DN125 | DN125 | DN125 | DN125 | DN150 | DN150 | DN150 | DN150 | |||||||||||||||||||||||||||||||||||||||||||||
| 水压降Water pressure drop | kPa | 53 | 53 | 53 | 53 | 56 | 56 | 60 | 65 | 65 | 67 | ||||||||||||||||||||||||||||||||||||||||||||
| 制冷剂Cryogen | 类型Type | R22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| 充注量Refrigerant volume | kg | 66 | 77 | 82 | 91 | 96 | 105 | 127 | 132 | 148 | 159 | ||||||||||||||||||||||||||||||||||||||||||||
| 外形尺寸 External dimensions |
长Length | mm | 3200 | 3200 | 3200 | 3200 | 32200 | 3250 | 3250 | 3250 | 3250 | 3250 | |||||||||||||||||||||||||||||||||||||||||||
| 宽Width | mm | 1720 | 1740 | 1760 | 1780 | 1780 | 1780 | 1780 | 1780 | 1730 | 1780 | ||||||||||||||||||||||||||||||||||||||||||||
| 高Height | mm | 1420 | 1460 | 1490 | 1510 | 1590 | 1700 | 1850 | 1920 | 2103 | 2080 | ||||||||||||||||||||||||||||||||||||||||||||
| 机组略重Machine weight | kg | 1990 | 2080 | 2220 | 2330 | 2550 | 2950 | 3050 | 3200 | 3450 | 3750 | ||||||||||||||||||||||||||||||||||||||||||||
NOTE
1.Cooling capacity rated at oil 35°C / ambient 35°C. Performance degrades with higher ambient temperature or lower oil temperature.
2.Installation requires min. 300cm clearance around unit for air intake/exhaust.
3.Non-standard/custom options available upon request. Contact us for details.
4.Specifications subject to change without notice for product improvement.
Drawings are for reference only; actual specifications will be provided based on the specific order.
